Adjustable Panhard Rod - Rubber Bushed│Adjustable Panhard Rod│4WD Car Components Manufacturers - Aupart

Adjustable Panhard Rod - Rubber Bushed

Adjustable Panhard Rod - Rubber Bushed, Track & Relay Rods
Adjustable Panhard Rod - Rubber Bushed, Track & Relay Rods
Adjustable Panhard Rod - Rubber Bushed

An absolute necessity on all raised 4WD's is the Adjustable Panhard Rod.
Designed to correct axle alignment, the fitment of an Adjustable Panhard Rod eliminates potential contact between tyre and body, and improves handling issues on vehicles on vehicles lifted 2"+.
All Aupart Adjustable Panhard Rods are Heavy Duty, single thread off car adjustable and come complete with bushings and steering damper mounting brackets where applicable.

The majority of Aupart Adjustable Panhard Rods now come standard with high flex Rubber Bushings. This has been a gradual change based on customer demand.
Our Aupart rubber bushings bring the factory ride feel to the upgraded replacement Adjustable Panhard Rods.
The high flex Aupart rubber bushings offer less Noise, Vibration & Harshness over the polyurethane bushings for panhard applications.

  • Product Feature
  • Product Specifications
Aupart Rubber and Urethane bushings are the same dimensions as factory original, so all rods are manufactured to factory bush specifications.
Bushing replacement if required is easy - just use factory original or aftermarket.

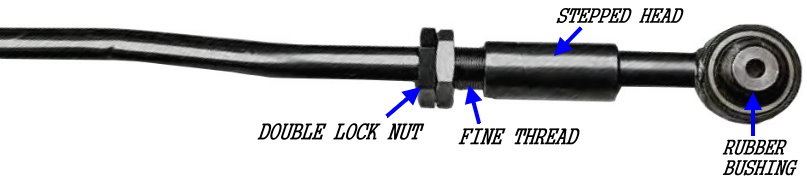

Design changes over time have seen the implementation of double nuts for extra security, 150mm of adjustment to suit for 2-6” lifts and fine 2.0mm pitch thread for finer adjustability.



PartNumber Application Location Bushing OD (mm) Wall Thickness
MITSUBISHI
AT1096 MITSUBISHI PAJERO NA-NL 83-00 Rear KB207 30 Solid
NISSAN
AT0526R NISSAN PATROL GQ-GU RHD Only Front KB06/KB45 30 Solid
AT0527R NISSAN PATROL GQ-GU Rear KB06/KB45 30 Solid
AT0549U NISSAN PATROL GU 01-10 Y61 w/
Swivel Rubber Bushing RHD only		 Front KB06 33 Solid
AT0550U NISSAN PATROL GU 01-10 Y61 w/
Swivel Rubber Bushing		 Rear KB06 33 Solid
AT1104 NISSAN NAVARA D23 NP300 14-on Rear KB06/KB45 30 Solid
**Note – AT0549U does not fit GU (Ute) Cab/Chassis – use AT0526R.
**At 30-33mm OD solid for the Patrol & Cruiser, Aupart Panhard Rods are much heavier duty than factory original.
TOYOTA
AT0856 TOYOTA HILUX 130 SERIES (Urethane Bushing Only) Rear Urethane 27 Solid
AT0535R TOYOTA LAND CRUISER 80/105 SERIES Front KB117 30 Solid
AT0536R TOYOTA LAND CRUISER 80/105 SERIES Rear KB118 30 Solid
AT0874 TOYOTA LAND CRUISER 78/79 SERIES 6 Cyl Front KB116 35 Solid
AT0850 TOYOTA LAND CRUISER 76/78/79 SERIES V8 Front KB116 33 Solid
AT0912 TOYOTA LAND CRUISER 100 SERIES (IFS) (Urethane Bushing Only) Rear Urethane 30 Solid
AT0960 TOYOTA FJ CRUISER, PRADO 120 SERIES, 4RUNNER Rear KB187 34 Solid

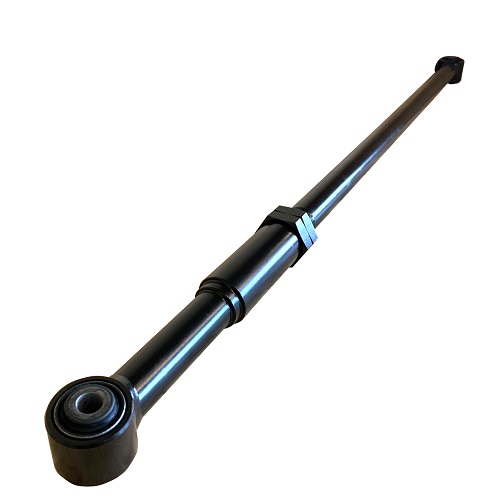

AT0961 TOYOTA LAND CRUISER 200 SERIES Rear KB170 33 Solid
AT1209 TOYOTA LAND CRUISER 76/78/79 SERIES V8 (w/DPF Fitted) Front   33 Solid
JEEP
AT1079 JEEP CHEROKEE XJ 94-04,
JEEP GRAND CHEROKEE ZJ/ZG 93-98,
JEEP WRANGLER TJ 96-06 RHD Only		 Front KB18 26 Solid
AT0842 JEEP WRANGLER JK 07-18 w/Swivel Bush Front   34 Solid
AT0843 JEEP WRANGLER JK 07-18 w/Swivel Bush Rear   34
AT0868 JEEP WRANGLER JK 07-18 RHD Only Front KB128 26 Solid
AT0869 JEEP WRANGLER JK 07-18 Rear KB128 26 Solid
